The Web-client uses a typed form for creating/editing messages, which has two display modes-full screen (Fig. 1) and modal window (Fig. 2).

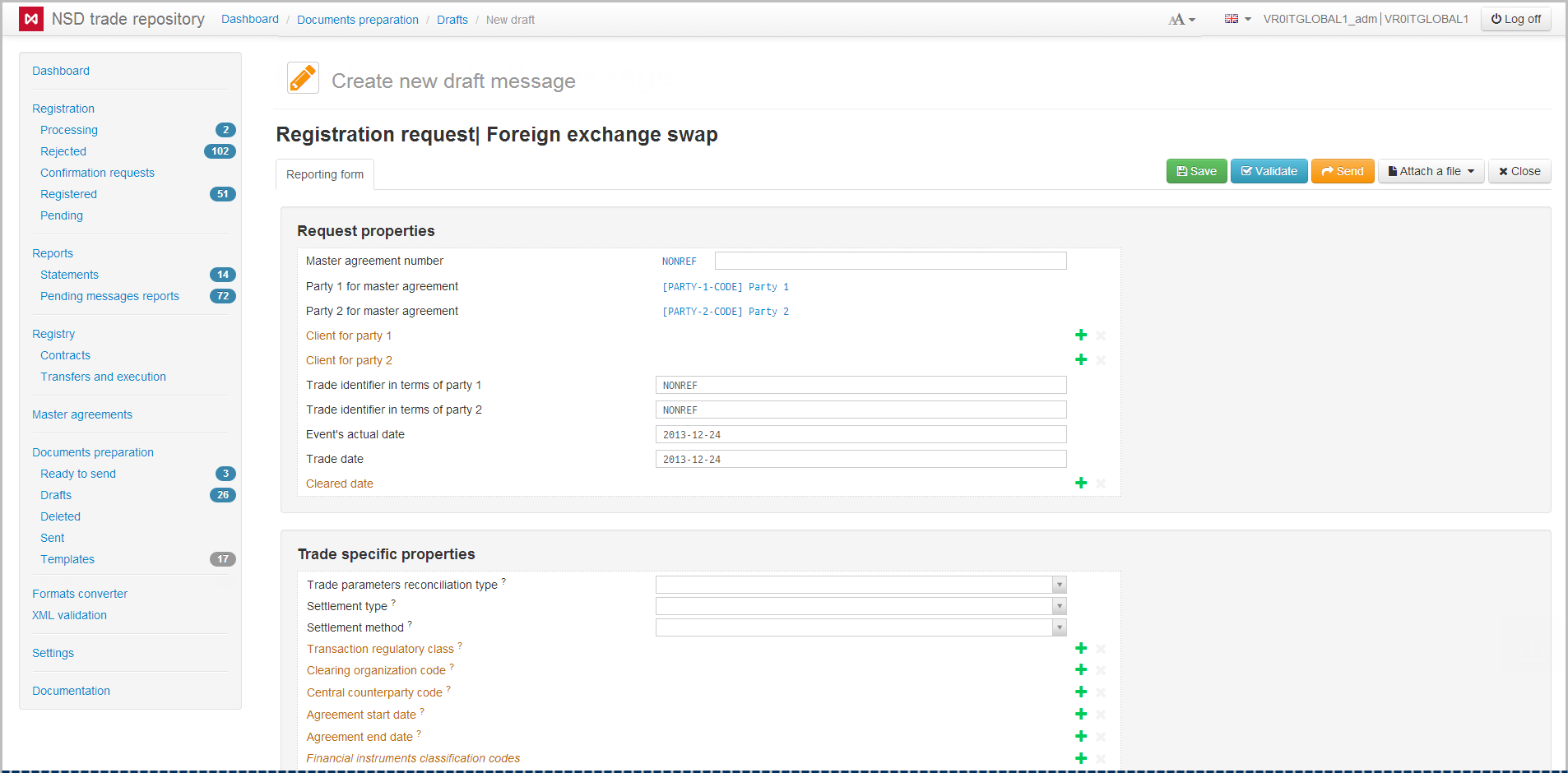

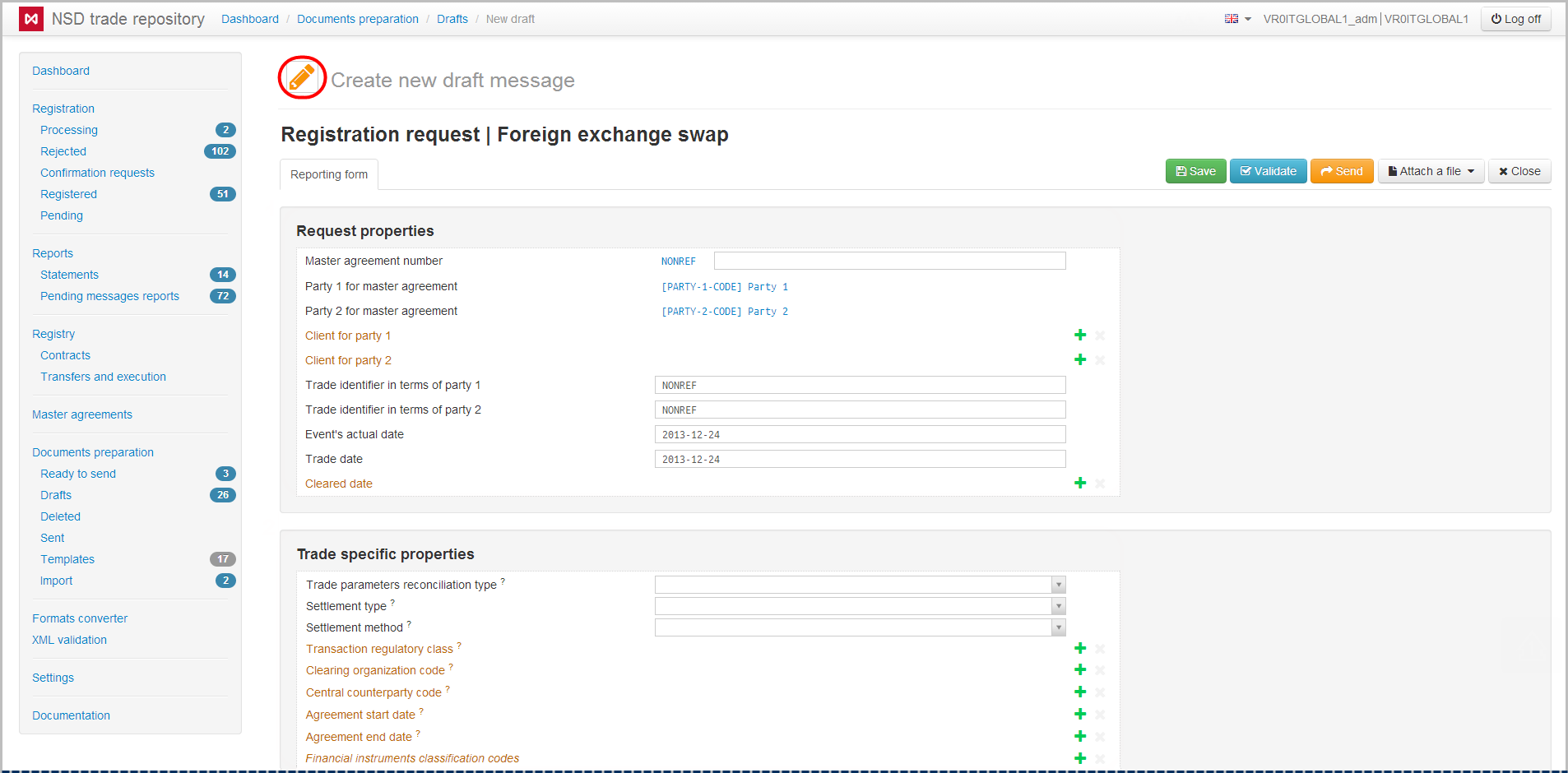

Fig. 1 – full screen mode

On this page:

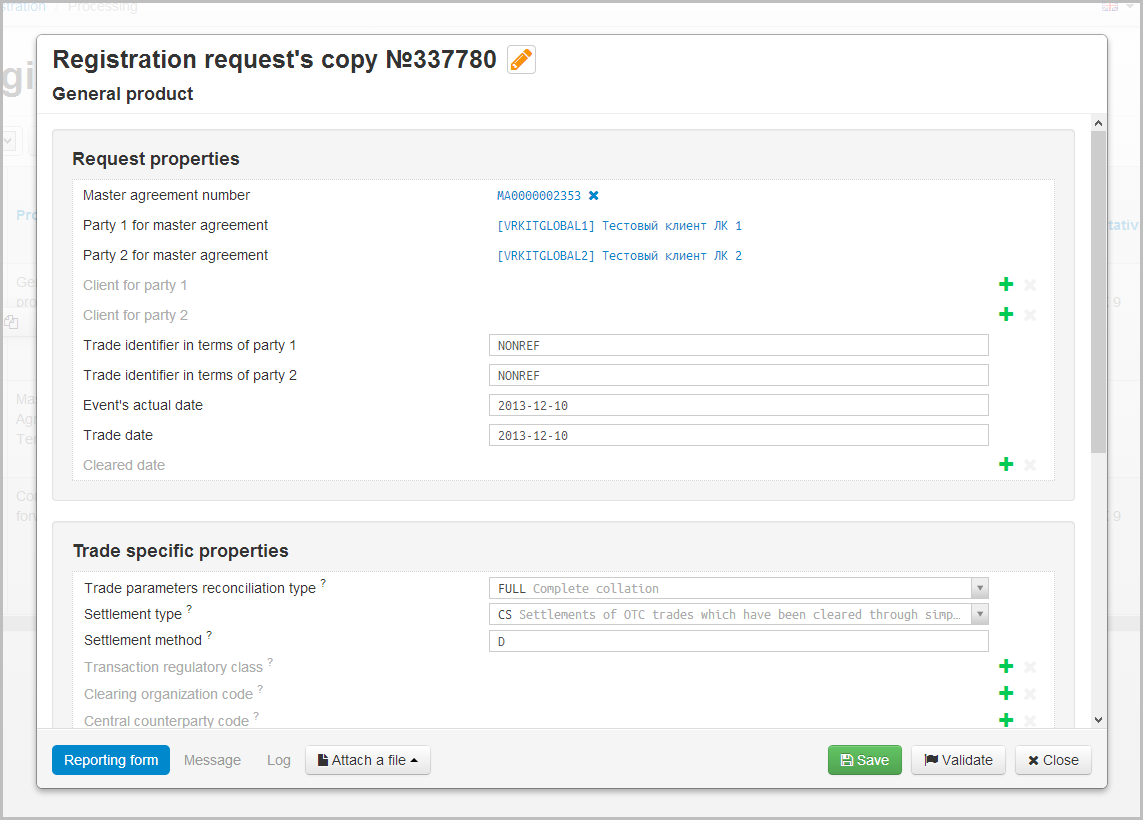

Fig. 2  modal window form display

The full screen mode is used by default to create, copy and edit messages in the sub-sections of the Preparation section. The second display mode is available only for the administrator and used to view and modify messages sent to the repository, which are contained in the RegistrationReportsRegistered contracts registry and Master agreements forms.

The form includes the following elements:

  1. data input area – designed to fill the parameters and conditions of the contract/report (Fig. 1,1);
  2. toolbar – used to perform tasks of saving, sending and checking of the filled message form (Fig. 1,2).

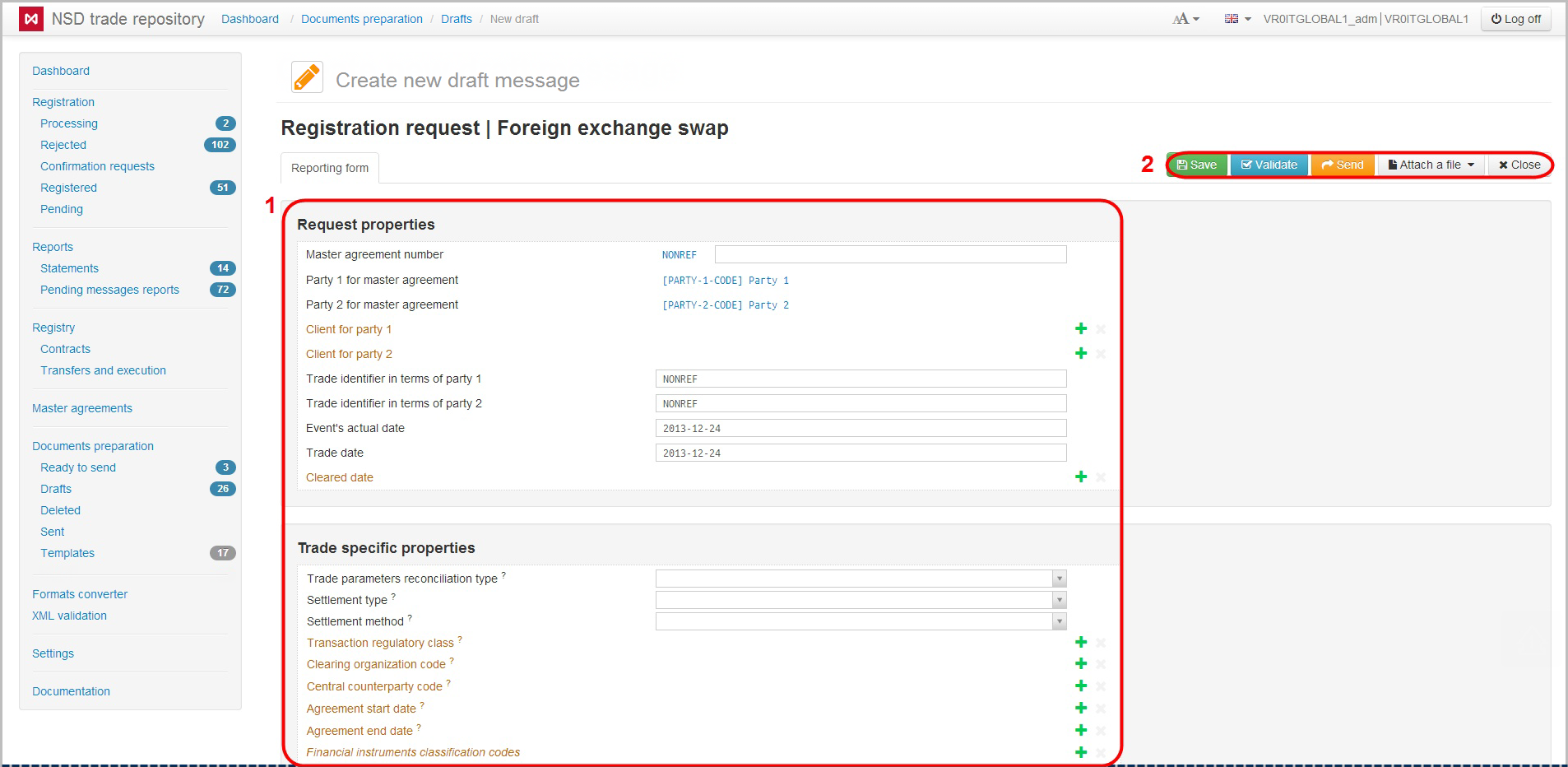

Fig. 3 – elements of the order creation form

Data input area

The data input area is divided into several blocks, the contents of which depend on the type of message (Fig. 2). Table 1 describes the blocks for contracts, MAs, reports and statement requests.

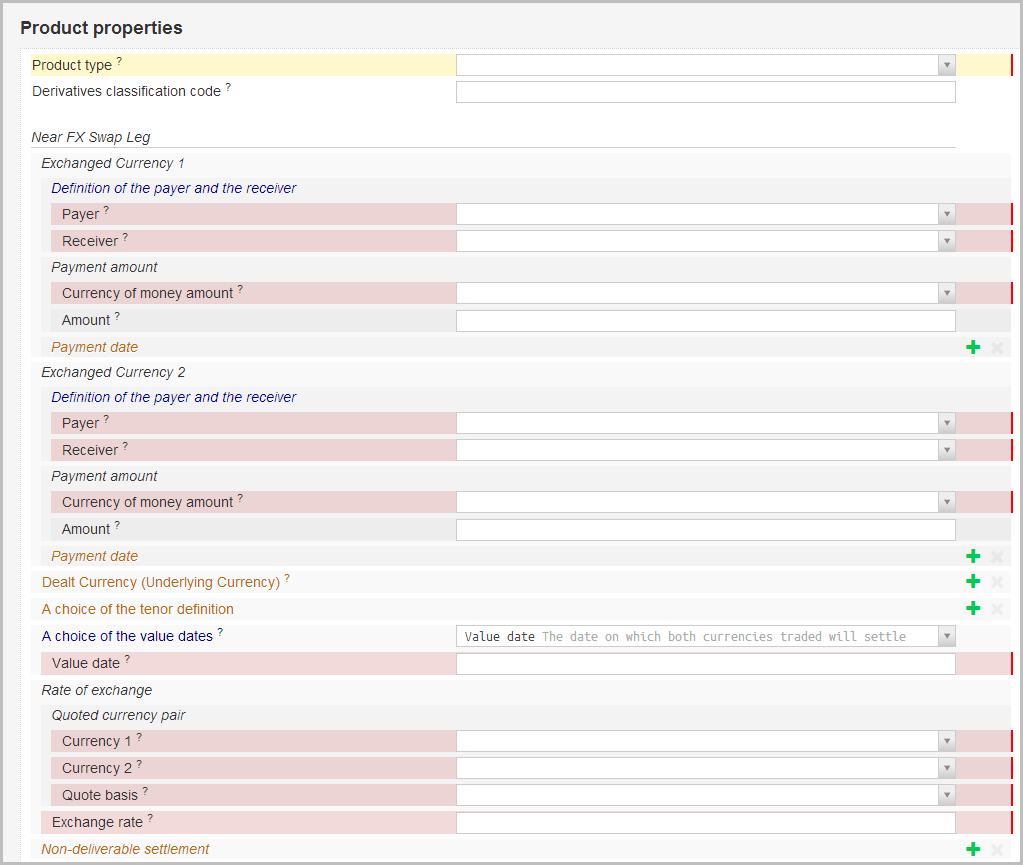

Fig. 4 – example of information blocks

Table 1 – Contents of blocks for various types of orders

Block nameRequired data
Contract registration
Order parameters
  • MA identifier
  • MA parties
  • identifiers of contracts in the parties’ accounting system
  • date of the reported event
  • date of transaction
Specific parameters of the transaction
  • conditions of the transaction coordination
  • type and method of calculation
Economic parameters of the transaction
  • financial and economic data
Transaction security
  • conditions for the fulfillment of the transaction security obligations

To fulfill the transaction security obligations check the Transaction security box

This will open an additional area for data input

Master agreement registration
Parameters of the master agreement
  • MA parties
  • MA identifier in the parties’ accounting system
  • date of the reported event
  • date of
Terms of the Master Agreement
  • MA type
  • MA version type
  • method of MA coordination
  • information about basic reporting agents
  • information about reporting agents
Quarterly report
Order parameters
  • MA identifier
  • MA parties
  • identifiers of contracts in the parties’ accounting system
  • date of the reported event
  • date of transaction
Report parameters
  • start and end of the reporting period
  • number of option contracts, swaps and other contracts
  • obligations of the first and second parties
Report on the fulfillment of obligations
Report parameters
  • parties to the contract, on which the report is being prepared
  • party confirming the report
  • date of the reported event
  • financial parameters of obligation fulfillment
Report on the status of obligation fulfillment
Order parameters
  • MA identifier
  • MA parties
  • identifiers of contracts in the parties’ accounting system
  • date of the reported event
Report parameters
  • name of transactions for which the report is generated
  • status of their implementation
Statement request
Request parameters
  • party the statement is requested from

  • type of statement

  • period for which the data are retrieved

Description of the input fields

Input area contains required (Fig. 5,1) and optional (Fig. 5,2) data fields. Optional fields are disabled by default. To enable them, click As a result, the following interface changes will occur:

  • the field will be possible to fill in;
  • the  button will be hidden;
  • the disable field button will appear.

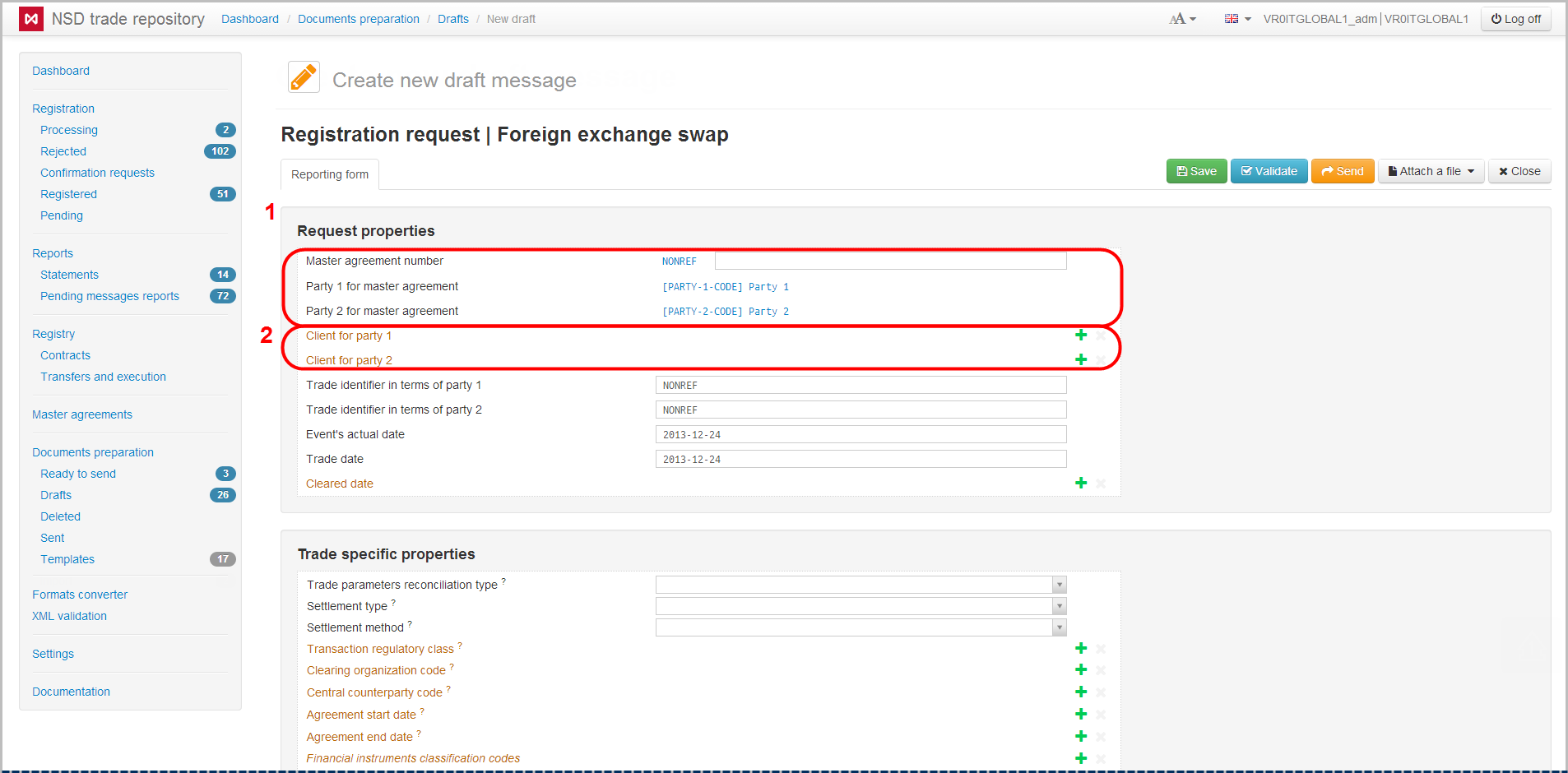

Fig. 5 – required and optional fields

Some fields can be duplicated by clicking on the button  (Fig. 6). If there is a repeating field, the first click on the button  enables it, and the next ones duplicate. To remove field duplicates click .

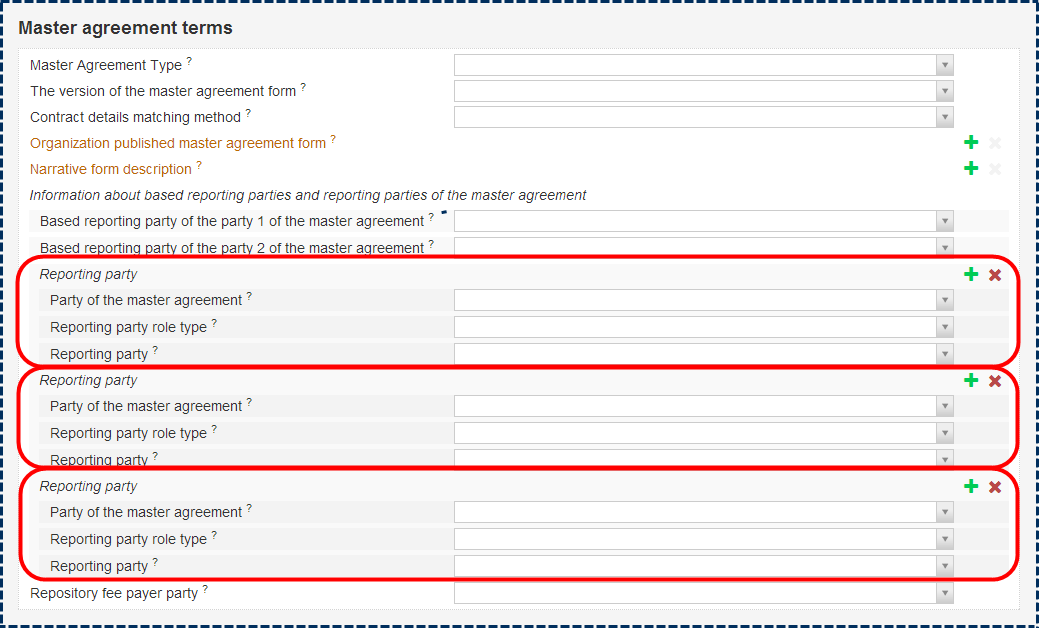

Fig. 6 – field duplication

When you hover the mouse over the “?” symbol (Fig. 7,1), a graphic element appears that contains the description of the corresponding field (Fig. 7,2). When you click on the icon  the website of the NSD’s trade repository messages specifications will open.

Fig. 7 – tooltips

Filling out data input fields

Depending on the field type, the following input methods are available:

  1. data selection in the pop-up window (MA numberMA party and dates of the transaction);
  2. manual data input (eg, contract number in the accounting system of the first/second party);
  3. selecting data from the drop-down list (for example, fields of the Specific transaction parameters group Specific transaction parameters group).

Master agreement identifier

Agreements can be concluded within the framework or without MA. Therefore, a Master agreement number field is an optional field. To activate the field, click the   button next to the field name.The Master agreement identifier field can be filled out by:

  • manually typing the data into the row;
  • selecting data in the pop-up window that opens by clicking on the  button

Fig. 8 – filling out the Master Agreement Number field

The manual data entry is used when creating a draft of initial registration message for a contract with a counterparty, who is not a client of the repository. In this case the master agrement can not be registered in the repository and thus it doesn't have a repository indentifier. For details on the registration of transactions with non-residents see section Registration of transactions with non-repository clients (russian version).

If MA is registered in the repository, you can select it from the list in the pup-up window (Fig. 9) that opens when you click on the NONREF link (see 8.2). In this window you need to:

  1. click on the button  in the Counterparty field and select the MA category from the drop-down list (Fig. 9,1). If you select All available, you will be offered a list of all registered MAs. When selecting a particular counterparty, the system will generate a list of MAs, where that specific party is registered in any role;

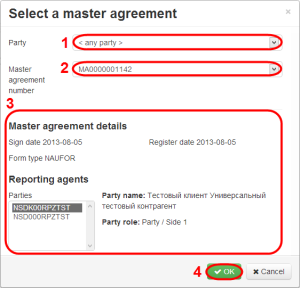

    Fig. 9 – Selection of the master agreement

  2. click on  in the MA identifier field and choose the MA identifier from the drop-down list (see Fig. 9,2). As a result, the window displays information about the MA (see Fig. 9,3):
    1. date of MA conclusion and registration;
    2. MA form;
    3. list of counterparties and their roles.
  3. click OK to fill out the field in the main form (see Fig. 9,4).

As a result, the main form will indicate the identifier of master agreement (Fig. 10,1), fields Party 1 of the master agreement and Party 2 of the master agreement will be filled automatically (see Fig. 10,2).

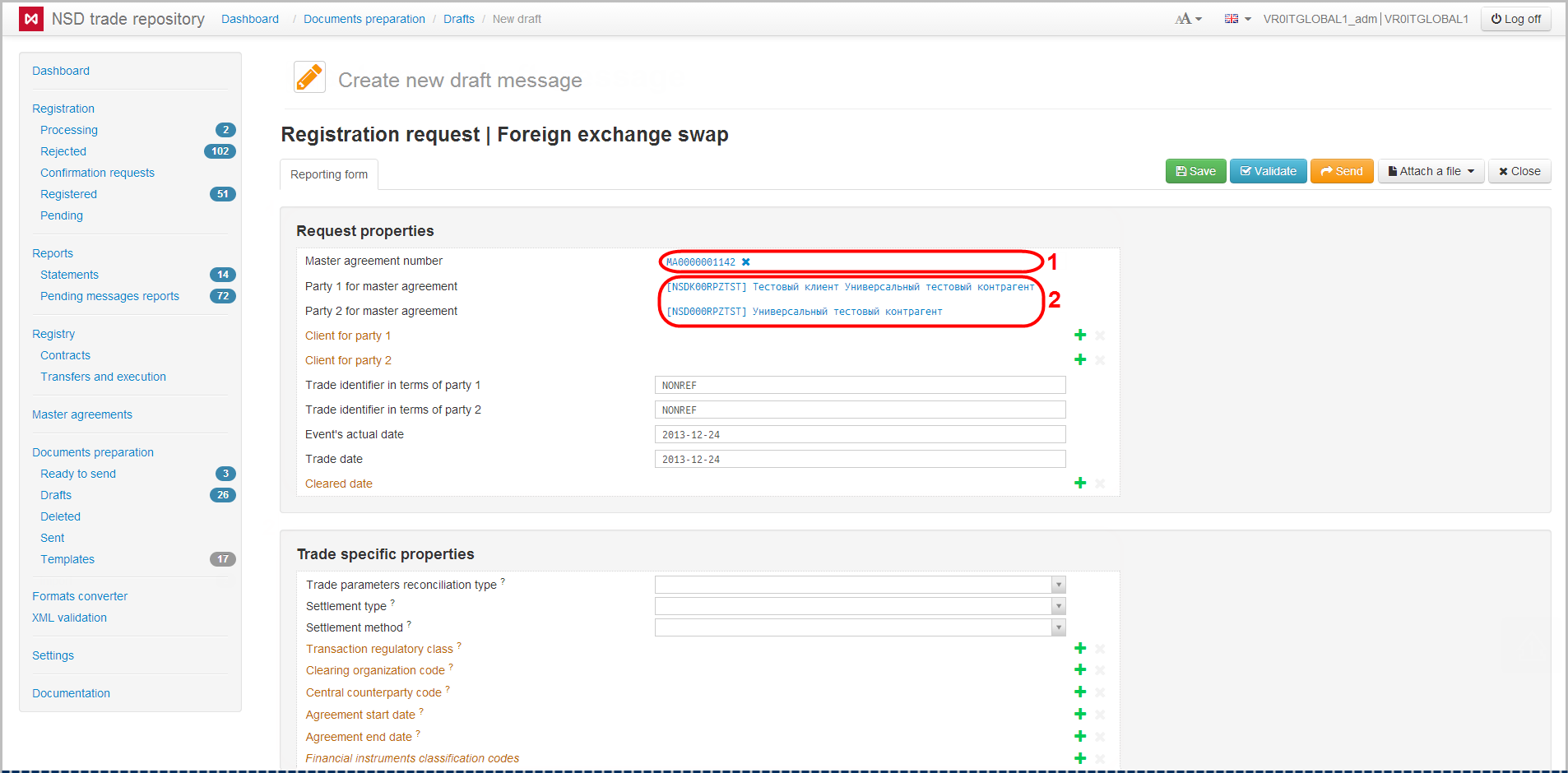

Fig. 10  filling in form fields when selecting the MA number from the list

Clicking on the link next to the fields Party 1 of the master agreement or Party 2 of the master agreement will open the Counterparty window (Fig. 11) that will contain the following information:

  • counterparty repository identifier;
  • name of the organization;
  • role of the counterparty.

Fig. 11 – filling out the Party of the master agreement fields when choosing from the list of MA numbers

To change the MA identifier delete the current number with button  and choose another one, following the instructions on filling out the Master agreement number field.

Trade concluded without MA

To conclude agreement without MA you need on the Message creation/editing form activate the Trade concluded without Master agreement field. You do not need to activate the Master agreement number field.

Fig. 12 – Trade without MA

Parties of the master agreement

If the MA identifier was entered manually (see Fig. 8,1), fields Party 1 of the master agreement and Party 2 of the master agreement will be filled in from the list of the Choose counterparties pop-up window (Fig. 14), which is opened by clicking on the link [PARTY-1-CODE] Party 1 (Fig. 13).

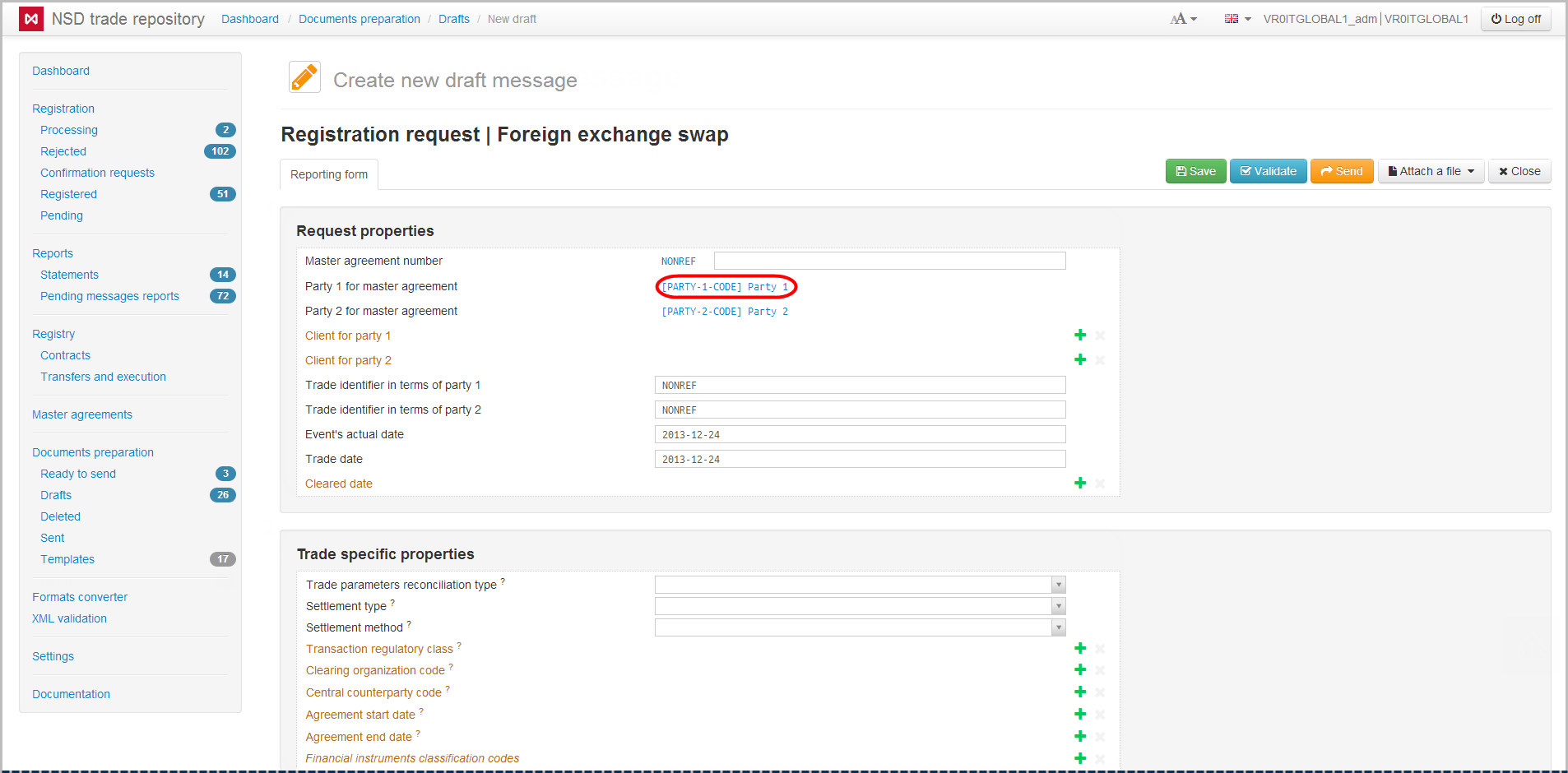

Fig. 13  filling in the Party of the master agreement field

The Choose a party window contains a list of all organizations that are clients of the repository (Fig. 14,1).

Fig. 14 – choose parties of the MA

To choose the necessary organization:

  1. select the company from the list or enter the company name in the search box (see Fig. 14,2). As a result, the customer list will display companies whose names fully or partially match the name typed in the search box.
  2. select the necessary company.
  3. click OK to fill in the main form field (see Fig. 14,4).

The second party of the MA, UTI generating party can be simultaneously selected in this window. To do this:

  1. check the chekbox (see Fig. 14,3).
  2. choose the necessary organization from the list.
  3. click OK to save the data.

To add the data of your party click the button.

Parties that do not report to the repository, are marked with icon.


Fig. 15 – Not reporting parties

If you need to specify the organization, which is not in the list, click the Set own party button (Fig. 16,1). The [NONREF] will be added to the field. Next, enter the organization name (Fig. 16,2) and click OK.

Fig. 16 – NONREF

For details on how to fill in the fields Party 1 of the master agreement or Party 2 of the master agreement in case of registering a transaction with non-clients of the repository, see section Registration of transactions with non-repository clients (russian version).

To change the MA party delete the current organization in this window with button  and select another one, following the instructions on filling out the Party of the master agreement field.

Internal storage

Some of the fields are filled in with values from the system’s internal directories, for example, comparison modes, currency codes. To see the list of values click . This will open the list (Fig. 17), in which the values are displayed in alphabetical order. If you enter the value in the search box (see Fig. 18,1), the list will display values that partially or fully match the indicated one (Fig. 18,2). To fill in the fields, select the necessary value from the list. For a detailed description of the directories see the documentation NSD’s trade repository messages specifications

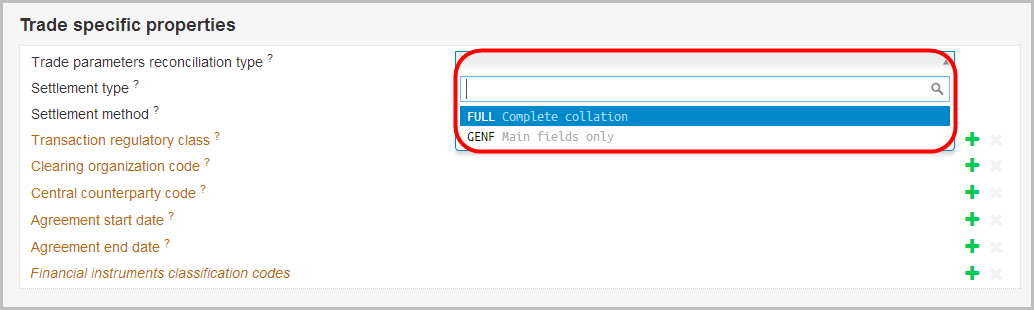

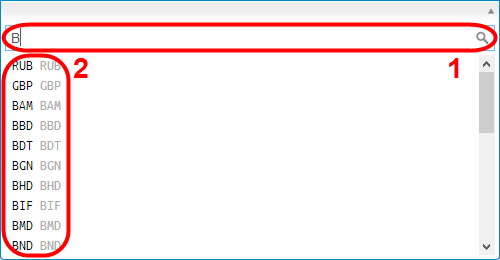

Fig. 17 – example of filling the fields using directories                                    Fig. 18 – searching a value in the list

Draft name

To specify the draft name (also for modal window form), activate the name input field by clicking  (Fig. 19), enter the order name into the field (Fig. 20) and click  button to save the changes. To discard changes, click .


Fig. 19 – button enable the name input field

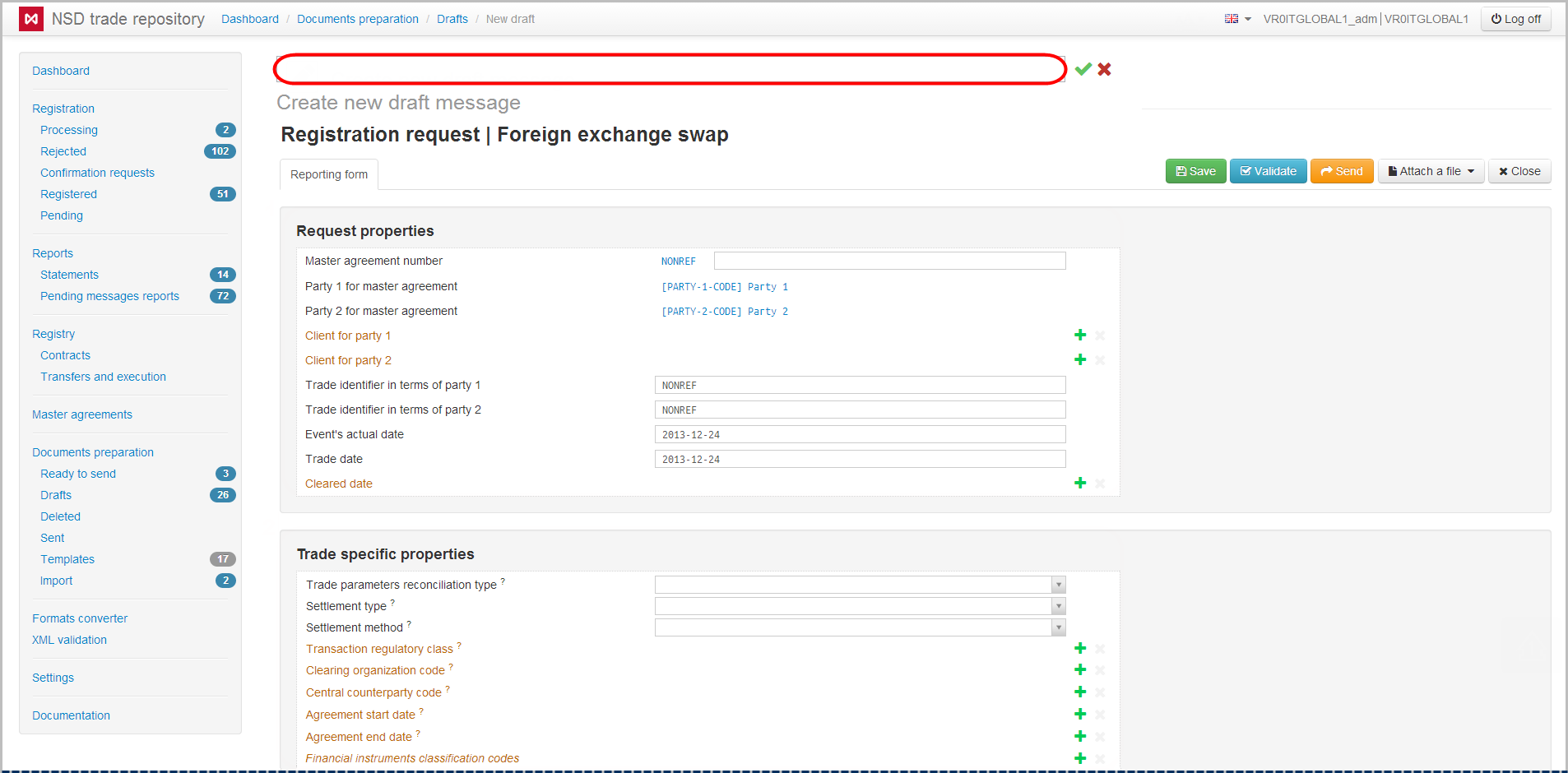

Fig. 20 – order name input field

The draft name will be displayed in the drafts list after saving.


The following actions can be applied to a draft:

  • save;
  • check for format compliance;
  • send to the repository for registration;
  • attach a file;
  • close without saving changes.

These actions are performed using the toolbar buttons.

 – saving changes.

After clicking the button the order gets to the Drafts form. If at the creation of a new message the name was not specified, the Save window will open, where you must enter the draft name and confirm saving by clicking on the Save button.

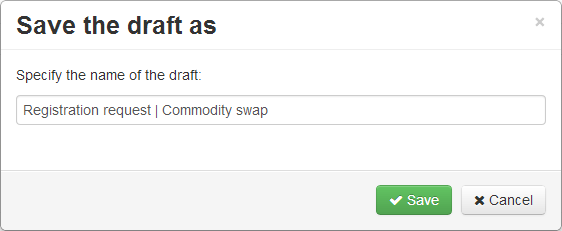

 Fig. 21 – saving changes

 – checking for format compliance.

After clicking the button, the system will automatically check the order for compliance with NSD formats. Check results will be displayed in the Log tab in the form of a list of system errors. (Fig. 22 and 23 – modal window).

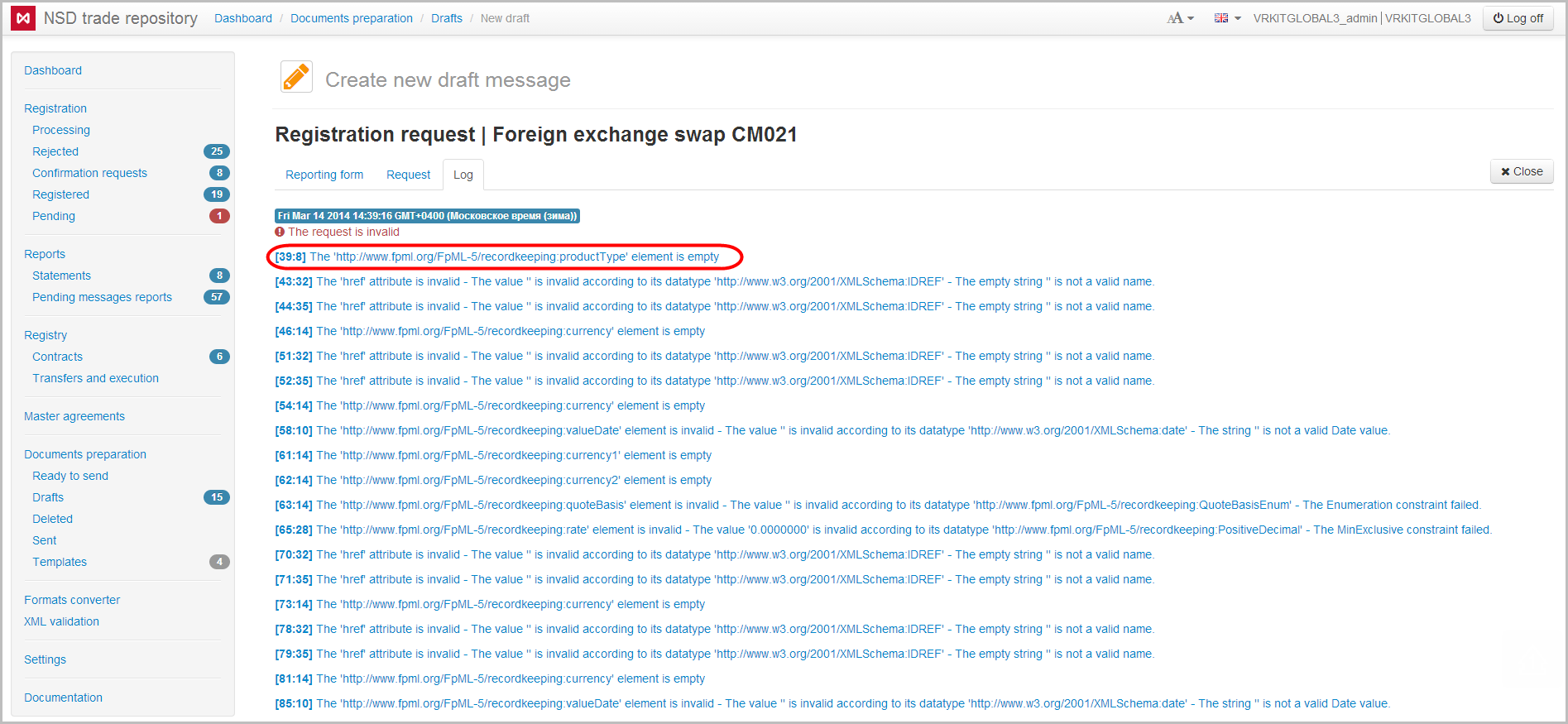

Fig. 22 – Log tab

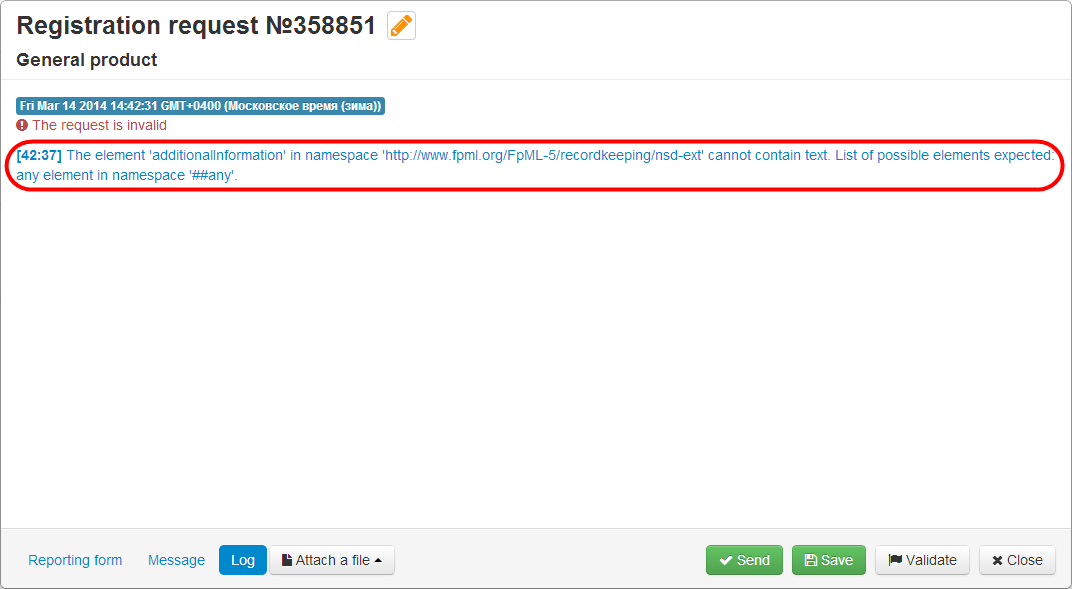

Fig. 23 – modal window

Click on the error takes the user to the Reporting form. The incorrectly filled fields will be highlighted in red. The specific error, on which you have clicked, will be highlighted in yellow (Fig. 24).

 Fig. 24 – Reporting form

If the check does not detect any errors, the Log tab will indicate that the order is valid. The validation is also performed automatically when clicking Send. An invalid order cannot be sent to the repository.

 sending order to the repository for registration (not available when creating, editing a template, order based on the template).

After clicking on the button a confirmation screen appears, where you need to click OK to place a DS (digital signature) and send the message to the repository (Fig. 25). The Send button is not available when creating, editing orders based on a template.

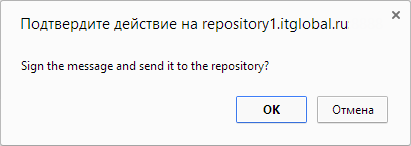

 Fig. 25 – sending order

  adding a file to an order.

Clicking on the button opens a context menu with two file upload  options:

  • select file from the computer;
  • select file from previous uploads.

After selecting one of the upload options opens the screen form with using which you need to select the necessary file and click . When sending an uploaded document to the repository the file name will be changed automatically in accordance with the rules of NSD electronic document flow.

  exit the order creation/editing form.

After clicking the button the confirmation window will appear, where you should click OK to exit form. You will be taken to the form which was opened to create or edit an order (Fig. 26).

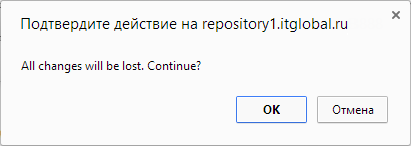

 Fig. 26 – exit the order creation/editing form
